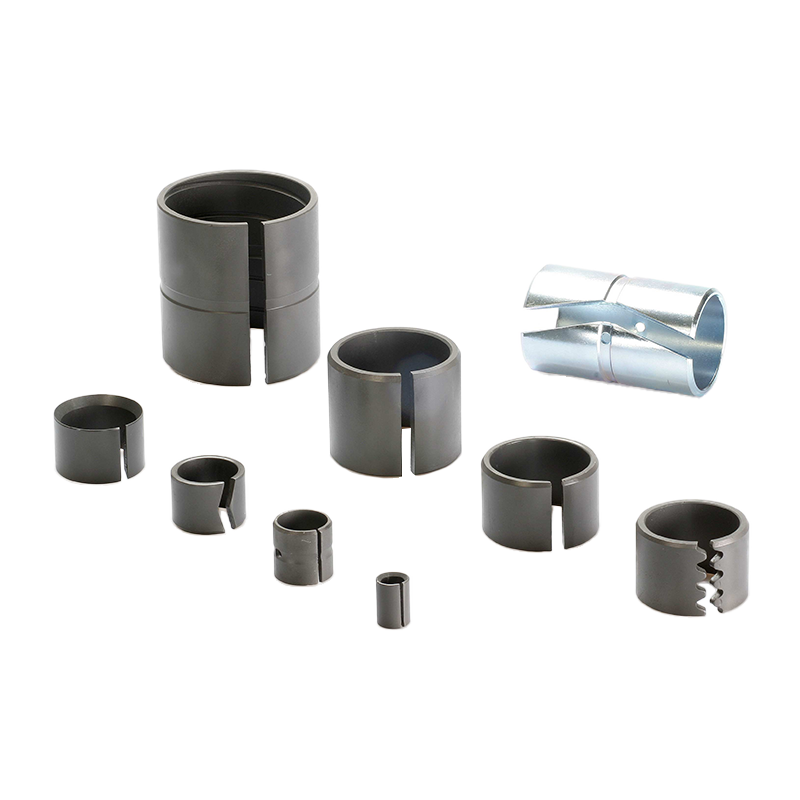

Tension Bushings Built For The Toughest Industrial Applications And Heavy Equipment

Discover how hardened tension bushings protect critical pivot points in mining, agriculture, construction, and waste equipment, improving durability, reliability, and service life.

Across agriculture, mining, construction, and waste management, equipment operators expect their machinery to operate through long hours, under heavy loads, and in harsh environments.

These machines have slow-rotation pivot points that carry significant loads under some of the toughest conditions and need consistent protection from damage. That’s where hardened tension bushings shine, helping equipment operate longer, more safely, and more cost-effectively.

From hydraulic cylinder ends to bucket linkages, boom arms, and anywhere a shaft or pin passes through a joint, tension bushings protect expensive components and maintain performance when it matters most.

Different industries call bushings by many names—split bushings, expansion bushings, hydraulic end or hydraulic cylinder bushings, spring bushings, attachment point bushings, and self-adjusting bushings—but they all refer to the same powerhouse fastener.

Designed for harsh conditions, tension bushings are a proven and trusted solution across demanding industries.

Mining: Resisting The Grind

Mining equipment faces some of the harshest conditions imaginable. Excavators and bulldozers repeatedly slam into rock. Buckets swing hundreds of times per shift. Loaders crawl over uneven ground. Rock crushers vibrate relentlessly. In settings like these, pivot points take the brunt of the impact.

Tension bushings distribute load evenly, absorb vibration, and protect the shaft and bore. Operators rely on this stability when working in pits or underground, where downtime is expensive and repairs are difficult.

It’s no stretch to say that these components do a lot of heavy lifting when it comes to mining.

• They excel at the joints and pivot points of excavators, bulldozers, buckets, and heavy attachments, reducing stress and extending equipment life.
• They absorb shock and reduce vibration in truck and loader suspension systems as well as in rock crushers and grinding mills.
• They play an essential role in conveyor belt systems by maintaining tension and alignment as the belts carry heavy, abrasive materials.

Through-hardening strengthens performance. Because the entire cross-section is uniformly hardened, these bushings offer higher tensile and yield strengths, exactly what high-load-bearing applications like mining require.

Waste And Recycling: Built To Survive

Waste handling and recycling equipment rarely gets a break. Compactors run for hours at a time. Sorting machines move constantly. Trucks lift, dump, shake, and compress loads, placing enormous strain on their joints. Recycling equipment moves mixed materials through separating and processing stages, putting constant stress on pivot points.

These environments are defined by shock, grit, and high static loads. This is where the durability of a tension bushing becomes essential in preventing unnecessary maintenance, costly replacements, and potential downtime.

• They excel at protecting joints and pivot points in boom arms, rear and side loaders, hydraulic ends for trash compaction, the doors and back gate of dump trucks, and any moving point that comes under load.
• They maintain controlled rotation even under intense pressure, keeping equipment operating reliably.
• They protect the hinges and gates on dump trucks, which prevents small misalignments from turning into costly repairs.
• With a minimum static load rating of 125,000 pounds and a circumference speed of up to 192 inches per minute, these bushings are built to withstand harsh and daily abuse.

For unique dimensions or tighter OD and ID tolerances, Vogelsang offers oversized and press fit options to help waste management operations maintain peak performance and keep equipment running smoothly.

Agriculture: Tough By Necessity

Agricultural equipment is constantly exposed to dirt, mud, moisture, vibration, and long working days. During planting and harvest seasons, farmers cannot afford anything that slows machinery down—or worse, brings it to a standstill.

Equipment can be costly to produce, repair, and replace, which means you don’t want valuable parts to wear out. Tension bushings at pivot points can take the pressure.

• They maintain alignment and support rotational movement in planters, harvesters, conveyors, and tillers, where motion under load is constant.
• They provide a secure fit that withstands the stresses of dirt, debris, and moisture that would quickly degrade weaker components.
• They can be easily replaced in the field without freezing or specialized tools, which keeps operators working during the hours they need their equipment most.

Tension bushings are valued in agriculture not only for protecting equipment from the demanding rigors of daily operations but also for their durability, ease of installation, and simplicity of field repair, giving operators confidence that their machines will last through the toughest seasons.

Construction: Strength Under Pressure

Construction equipment is subject to a range of stresses. Machines may work on soft soil, clay, mud, sandy terrain, or abrasive rock, sometimes all in the same day. Attachments are frequently swapped in and out, and hydraulic systems lift, tilt, and load all day. Pivot points must remain tight, aligned, and protected to withstand the constant vibration and repeated impact that could otherwise lead to equipment failure.

Tension bushings help make this possible.

• They support the joints on machines such as backhoes, excavators, skid steers, and loaders, which rely on smooth rotation during repetitive motion.
• They maintain alignment in bucket linkages and attachment points where misalignment can quickly lead to structural wear.
• They protect joints on graders, scrapers, and other equipment that carry heavy loads over rough, uneven surfaces.
• They improve the reliability of hydraulic cylinder ends that repeatedly cycle under pressure.

Across construction applications, tension bushings deliver consistent performance and maintain a secure fit even when bore holes begin to show minor wear and ovalization, ensuring equipment operates reliably day after day.

Stocking And Availability: Ready When You Need Them

As a manufacturer with a robust stocking program, Vogelsang maintains a strategic inventory to support industries that follow seasonal or climate-based patterns.

Agriculture peaks in spring and fall, while mining and construction ramp up once the ground thaws, and waste and recycling are active all year. Having the right bushing available at the right time keeps operations running without delay.

• Vogelsang stocks inch sizes from ¾ inch to 3 ½ inches OD and metric sizes from M14 to M200 OD, with most metric items warehoused in Germany.
• Both standard and oversized bushings are available, including press fit versions for applications requiring tighter OD or ID tolerances.
• We support a variety of purchasing programs, including purchase orders, blanket orders, release programs, and commitment letters, depending on what works best for your operations.

With a robust inventory and flexible purchasing, Vogelsang is positioned to support both scheduled production and urgent operational needs.

Quality That Protects Your Investment

Not all bushings are created equal. Material, heat treatment, and precision design determine how reliably a bushing maintains its fit and resists wear under repeated stress.

• Vogelsang tension bushings are made from 6150 split seam hardened steel, known for excellent wear resistance and toughness.
• Thru-hardening ensures the entire cross-section of the bushing is uniformly hardened, resulting in higher tensile and yield strengths.
• Close tolerance design allows the OD and ID to maintain exact dimensions after installation, preventing loosening or premature wear.
• These high-quality bushings are proven in the field and have been trusted across industries for decades.

Precision is paramount. Details matter. By combining durable materials, precise engineering, and consistent production, Vogelsang bushings help reduce maintenance, extend service life, and protect valuable equipment components.

Total In-Place Cost Savings

Tension bushings deliver measurable benefits for OEMs and equipment operators, both in performance and total cost of ownership.

• Thru-hardened bushings are designed to replace solid steel (tubular) bushings and case-hardened parts that often prove less reliable over time.
• They protect high-stress pivot points, helping prevent expensive repairs and equipment downtime.
• They reduce warranty claims and lower warranty costs by minimizing component failures and damage to surrounding equipment.
• They install easily during production or in the field and do not require freezing or special tools.
• They restore a secure fit even when a bore hole becomes slightly worn, damaged, or ovalized
• Universal sizing accommodates standard pins and shafts, eliminating the need for custom components and simplifying integration.

These advantages make tension bushings a cost-effective solution that improves reliability while reducing total ownership costs.

Custom Engineering For Unique Needs

Every industry has applications that require more than standard sizes or designs. Vogelsang works closely with customers to develop engineered specials that meet specific operational requirements.

• Special lengths, added grease grooves or holes, and specialty raw materials can be provided to match unique demands.
• Extra large bushings and press fit designs are available when tighter OD and ID tolerances are required.
• Our engineering teams in the U.S. and Germany offer complimentary support to create, modify, or refine designs for optimal performance in the field.

By collaborating with customers, Vogelsang ensures that even the most challenging applications receive a reliable, tailored solution.

Quality Products, Trusted Support

For more than fifty years, Vogelsang has supplied high-quality tension bushings to industries where reliability is essential and downtime is costly. Whether you need standard components, custom-engineered specials, or long-term supply support, Vogelsang delivers solutions that keep heavy machinery running optimally, safely, and cost-effectively.

Request a quote online, or call at (800) 526-2376 to discuss your application. We will work with you to find the right bushing solution for your needs.
